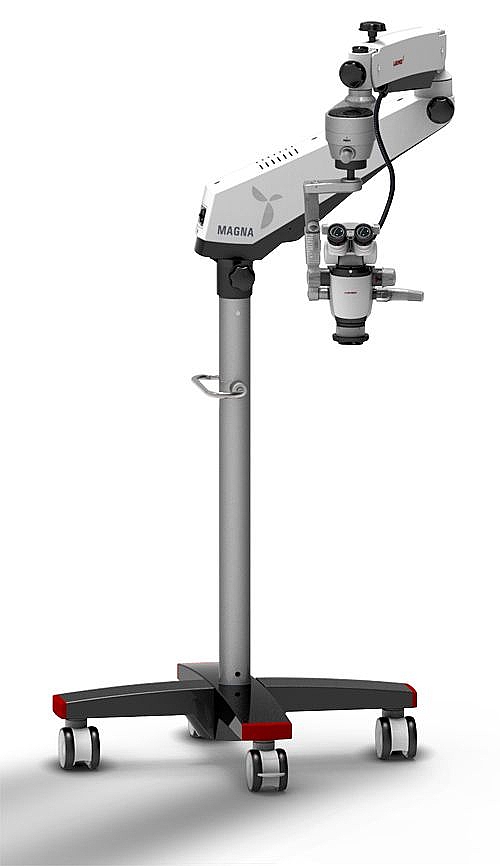

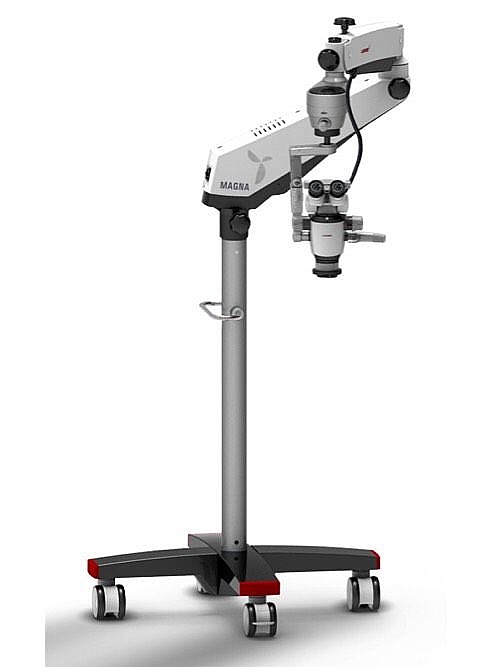

The Labomed® Magna dental microscope brings to your practice the power of crystal clear visualization in a compact, ergonomic design. The system features an Automatic Balancing Arm (ABA) that gives users 360 degrees of freedom in positioning the microscope. A highly responsive apochromatic zoom system ensures ease in landing on the ideal magnification. Super bright, long lasting LED illumination means dental professionals won't miss a thing.

ADVANTAGES OF Magna

Apochromatic premium optics are packaged in a convenient zoom system to provide a continuous range of magnifications. The NuVar™ variable working distance objective f500-f400 mm (or f200-400 mm optional) comes standard. Proprietary MaxLite™ coatings promise reflection- free, durable optics, ensuring the highest fidelity resolution.

A super bright LED provides shadow-free light with a natural daylight temperature (over 100,000 lux) for up to 60,000 hours. For digital documentation needs, a host of digital SLR, video camera, and CCD adapters are available with the ProLine™.

A brilliantly designed electromagnetic brake system provides ultimate flexibility in microscope positioning. Left/right handles each with their own brake-release buttons extend versatility. Holding down either button allows the microscope to move with ease. Upon release, the microscope locks and balances in place.

MICROSCOPE SPECIFICATIONS

• Built-in-Filters

  Green & Yellow

• Eyepiece

  WF 10X/18 mm lockable eyepieces, one with resolution markup to assist in diopter adjustment

• Light Source

  50W LED, 120,000+ Lux

• Binocular Tube

  0-210° tilting head with Rotoplate, DBSi (inclined double beam splitter), Double Iris and DSLR Adapter

• Zoom Range

  0.4-2.5X

• Objective

  NuVar system with variable focal length adjustment from 300-400 mm; optional 200-400 mm

• Maximum Wattage

  195 watts

• Microscope carriers

  ABA (Automatic Balancing Arm) with electromagnetic release for easy, drift free positioning

• Vertical Movement of arm

  ± 250 mm, power saving feature with light cut-off in park position

• Mounting Options

  Floor stand, wall mount and ceiling mount

• Apochromatic Magnichanger

  Galilean Zoom 1:6, convertible to 8 step magnichanger

• Stand

  Robust, vibration-free stand on a cross base with four lockable caster wheels

• Diopter Adjustment

  Both eyepieces, locking

• Microscope

  Galilean Zoom, continuously adjustable from 4x-25x with selectable click-stop lever that can be engaged.

• IPD Range

  49-78mm

• Focusing

  Manual, rotating collar for more ergonomic adjustment

• Package Contents

  • Tools for installation, dust cover

• Accessories (Optional)

  • Beam splitters (straight/inclined)
  • Rotoplate and/or extender
  • Proline range of camera/video adapters
  • NuVar variable working distance objective
  • Spacers and extender arms
