LABOMED Prima CS 醫療顯微鏡
.jpg)
- 商品編號: 186154
- 商品分類: 醫療手術顯微鏡

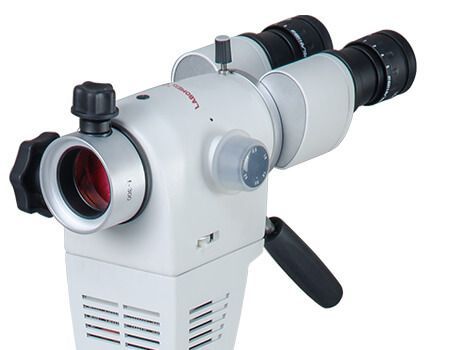

LABOMED Prima CS
詳細介紹
Delivering Efficiency, Performance, and Convenience to Today’s OBGYN
The PRIMA CS is a versatile solution for surgical and diagnostic work in gynecology. A meticulously designed optical system and built-in high power LED illumination module come together to provide a more streamlined microscope. A suspension and swivel arm mounted on a stable base brings greater flexibility to both clinical and surgical environments.
PRIMA CS Advantages:
A single 27-watt LED intelligently drives the illumination system to deliver over 75,000 lux at a carefully selected color temperature of 3700K, making Prima CS’s eye-pleasing illumination the brightest in its class. Built into the magnichanger, the LED design makes the system more compact and runs cool for over 50,000 hours..

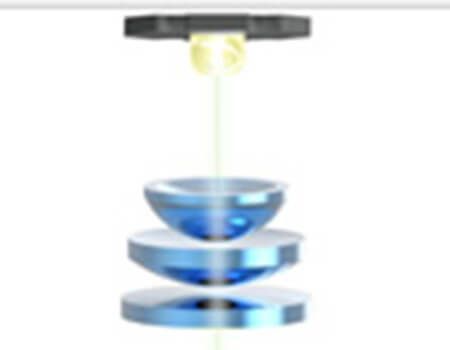

An Apochromatic 5-step Galilean optical system produces aberration-free images corrected for all primary wavelengths. Proprietary MaxLite™ coatings promise the highest degree of anti-reflective and scratch resistant properties, illuminating images evenly and without artifacts. Fine focusing control is provided through a range of long working distance CMOs.
To address digital documentation needs, a host of digital SLR, video camera, and CCD adapters are available with the ProLine™.
Microscope Specifications
-
Binocular Tube
Straight 90° viewing tube Optional: 45° inclined -
Eyepieces
WF 10X/18mm with foldable eye guards, diopter adjustment ± 5mm Optional: WF 12.5X/18mm -
Apochromatic Magnichanger
5 step: 0.4X, 0.6X, 1.0X, 1.6X, 2.5X -
Objective
f-300mm, manual focus -
Illumination
27W LED -
Built-in-Filters
Green -
Vertical Movement of Arm
± 250 mm -
Power Supply
100-240V, 50/60HZ, 1.6 Amp -
Optional Accessories
Beam splitter, CCD, USB Cameras -
Weight
Microscope with carrier - 2.8kg Swivel arm - 8kg Base with pillar - 40kg

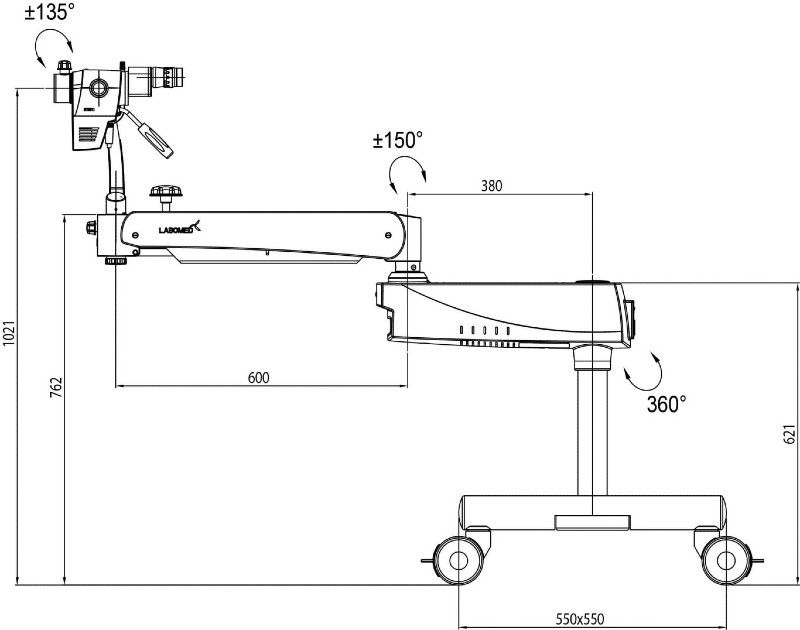

Dimensions (mm)
