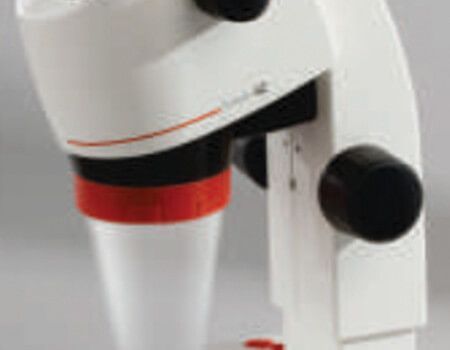

The Luxeo 4Z reflects high performance engineering in every detail, demonstrating yet again, an unwavering focus on delivering superb value. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, the Luxeo 4Z addresses the needs of modern biology programs as well as a host of quality control and routine inspection applications.

ADVANTAGES OF Luxeo 4Z

Smooth focus control and a fluid 4.4] Creenough zoom system guarantee strain free operation with minimal ware and tare to gears, all of which are made of high-strength steels.

A +/- 30 degree LED ringlight allows users to reduce surface glare from reflective topographies for true LED Oblique Illumination. Bright LED transmitted illumination is also achieved with a 3- LED glow screen. Continuous Intensity control is managed through a control dial on ring light.

Hi-precision plan optics and superior coatings ensure accurate color reproduction, excellent depth of focus, and superior resolution. A range of focussable eyepieces ensure convenience and interchangeability.

MICROSCOPE SPECIFICATIONS

• Optical System

  Greenough

• Illumination Control

  Incident / Transmitted (Oblique Settings) / Combined illumination control buttons with rheostat dial for light intensity control

• Incident Light

  + / - 30º Oblique illumination and variable intensity control dial

• Magnification

  4.4:1 Zoom Ratio

• Transmitted Light

  3-LED super bright glow screen, low heat emission

• Power Supply

  Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stabilizer

• Eyepiece

  Widefield 10x/18mm (interchangeable)

• Object Field Diameter

  6.6 to 28.5 mm

• Diopter Correction

  + / - 5 diopters

• Light Quality

  Homogeneous daylight (6500ºK), free of UV and IR emmissions

• Magnification Range

  8x to 35x Continuous

• LED Life

  Up to 25,000 hours

• Viewing Body

  Integrated Binocular, 45º, 52-74mm diopter adjustment

• Working Distance

  100mm

• Eye Guards

  Rubber, Retractable

• Incident Light Method

  Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light (5 LEDs)

• Camera Adapters

  C-mount adapters 0.3x, 0.5x, 0.7x

• Illumination

  LED Transmitted & Incident

• Accessories (Optional)

  • Pointers & Micrometer Reticules
  • Auxiliary Eyepieces
  • Polarizing Kit
  • Auxiliary Objectives
  • Soft Carrying Case
